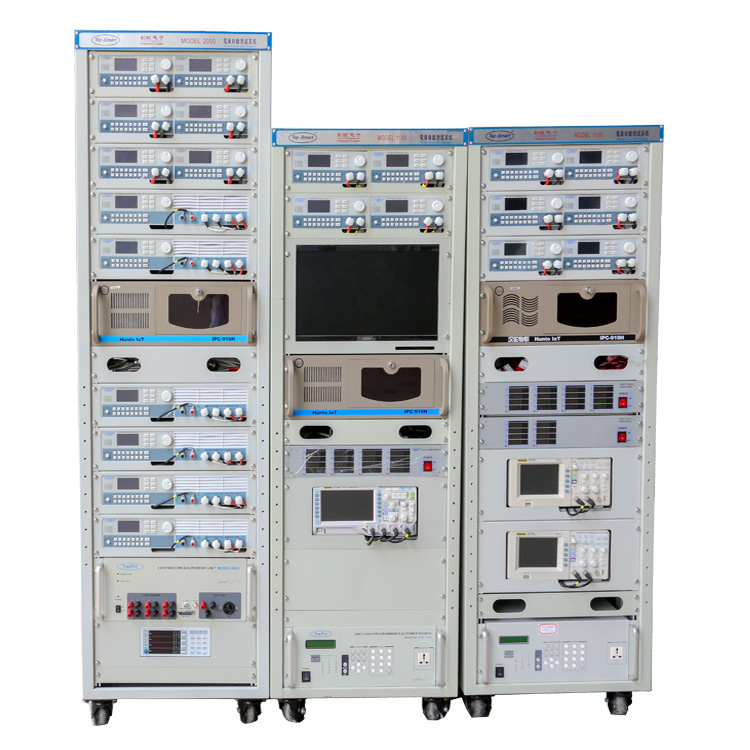

Test Equipment LED Automatic Power Supply Testing System ATS ATE Equipment

LED Power Supply Automatic Testing System Features:

Open

• Open hardware platform, allowing for the addition or removal of various testing devices as per customer requirements (including devices with GPIB, RS-232, USB interfaces)

• Supports simultaneous testing of multiple single/multiple group output LED power supplies, significantly enhancing production line capacity

• Open software platform, allowing for the expansion of various new testing items and functions based on customer testing requirements

• Supports multi-lane barcode pre-scanning function, and supports barcode scanning during testing to improve overall testing speed

Universal

• Supports testing of various power supplies (LED power supplies, adapters/chargers, PC power supplies, inverters, communication power supplies, etc.)

• Complies with Energy Star (ENERGY STAR) and IEC 62301 measurement requirements

• Supports Manufacturing Information System (ShopFloor) interface

• Supports testing of various power supply parameters under CV.CC.CR.LED modes

• Optimized display mode, arbitrarily combined hardware configuration

High Speed

• Supports simultaneous testing of multiple single/multiple group output power supplies, significantly enhancing production line capacity (The testing speed of LED power supplies/adapters/chargers is more than double that of the larger volume 6000 series power automatic systems)

• Conducts parallel barcode scanning during testing, greatly increasing testing speed

Professional

• Supports complete testing of LED driver power supplies

• Can accurately read the average current and effective current of the tested LED driver

• Can easily start low-power LED driver power supplies without pulling down the LED driver due to the large current surge from starting the electronic load

• By setting realistic LED turn-on threshold values and post-turn-on operating point resistance through the system, the test current and voltage waveforms are very close to real LEDs

• More realistic high-frequency current waveforms

• Dimming function testing: dimming current, dimming frequency, dimming cycle (requires additional related hardware devices) The LED Power

The LED power supply automatic testing system also boasts excellent flexibility and scalability. As technology advances and market demands evolve, new testing standards and projects continuously emerge. Automated testing systems are typically designed with a modular structure, allowing for easy addition or replacement of testing modules to meet various testing needs. This flexibility enables enterprises to quickly respond to market changes and maintain competitiveness.

The LED power supply automatic testing system demonstrates significant advantages in improving production efficiency, ensuring product quality, and reducing production costs. As technology continues to advance and application fields expand, such systems will play an even more crucial role in the future of manufacturing.

Test Items for the Switching Power Supply Testing System :
