| Brand Name : | Topfer |
| Model Number : | TopFer 5200 |
| Price : | to be discussed |
| Payment Terms : | T/T |
| Supply Ability : | 10 sets /60 days |
| Delivery Time : | 5 to 6 weeks |

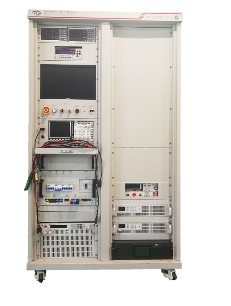

AC Charging Pile Function Testing System/ Supports finished product safety testing, with multi-position switching test capabilities
Introduction:
The system is a highly efficient comprehensive ATE testing system specifically designed for national, European, and American standard charging pile production lines. It serves as an integrated platform for testing three-gun AC charging piles, mainly used for testing on the charging pile production line. Its greatest advantage lies in ensuring product quality while also enhancing production efficiency for customers.
Features:
1.The hardware configuration is flexible, with strong system compatibility.
2. It features a standardized graphical user interface with a user-friendly design.
3.The fan used is a small-sized axial flow fan, characterized by high airflow, good heat dissipation, and low noise.
4.Equipped with switches for PE, CP, and PP contact circuits, it can simulate the on/off status and fault conditions of each circuit. Real-time monitoring and display of charging voltage, current, and charging status.
5.Includes a computer display interface that shows real-time values such as charging pile voltage, current, CP duty cycle, CP frequency, etc., for easy viewing.
6.The device supports tests for charging pile control timing, normal startup and charging phases, PP disconnection, CP disconnection, etc.
7.It comes with upper computer software functionality for semi-automatic testing of AC charging piles with manual assistance.
8.After testing, it can generate test reports and upload data, facilitating user tracking and inquiries.
9.Meets interoperability-related timing tests such as T1, T1', T2, T2', T3, T3', T3" time, etc.
10.Optional barcode scanner for quick scanning of products and inputting product code information for testing.
11.The test software allows for editable test items, flexible adjustment of test parameters, and automatic generation of test reports. Integrated testing product communication command sets, parameter reading, parameter calibration, etc.
12. Features statistical analysis capabilities. Test results can be archived, facilitating statistical report management.
13. Offers a high cost-performance ratio, excellent stability, and efficient testing speed.
Test Items:
1.Pre-power-on Detection
2.Power-on Detection
3.Connection Confirmation Test
4.Charging Readiness Test
5.Startup and Charging Phase Test
6.Normal Charging Completion Test
7.Charging Connection Control Timing Test
8.CC Disconnection Test
9.CP Disconnection Test
10.CP Ground Test
11.Protective Conductor Continuity Loss Test
12.Output Overcurrent Test
13.Disconnect Switch S2 Test
14.CP Circuit Voltage Limitation Test
15.Load Make-Break Test
16.Input/Output Performance Test
17.Metrological Data Consistency Test
18.Overload Current Protection Test
19.Leakage Current Protection Test
20.Input Overvoltage Protection Test
21.Input Undervoltage Protection Test
|
|
